DJ_Fruchtzwerg
NEU ohne Kristallzucker

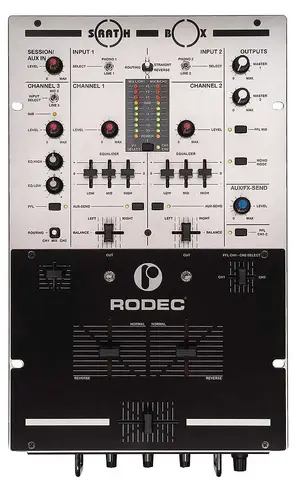

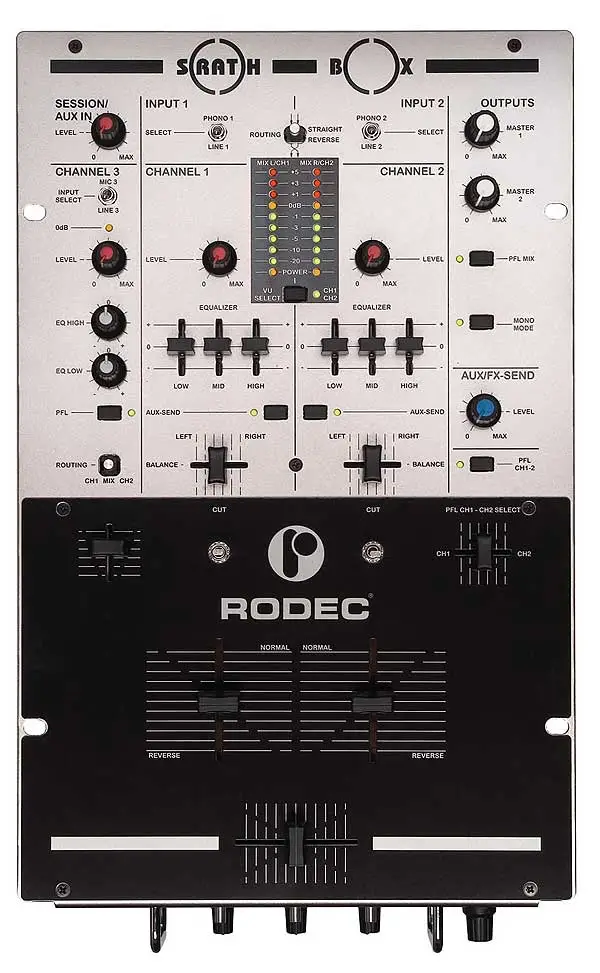

Hier die Daten und ein Bild :
The high end mixer market is about to get another product to shake things up a little. Rodec have announced their new 2 channel featured-filled battle mixer - the Scratchbox.
Lamont from www.realtablist.com has been involved in testing the Scratchbox and has much praise to heap upon it. If you're reading this Lamont, share the knowledge.
I'll let the spec speak for itself...
FEATURES
10 inch width - 9 units - mixing panel.
Frontpanel in elegant Titanium paint.
Aluminium anodised smooth scratchplate, no obstructions by any paint of text print on the panel.
2 Handles at the front to carry the mixer and to avoid unwanted moving of the buttons.
Same height as Technics SL1210-MKII turntable.
4 Input channels:
- 2 Phono inputs on gold plated RCA connectors.
- 4 Line inputs CH1 + CH2 + CH3/FX-return + CH4/Session/Backtape-in.
- 1 Microphone input on COMBO (XLR-JACK) connector.
Outputs:
- 2 Master outputs on RCA connectors.
- Symmetrical output with XLR-connectors on master 1.
- 1 Aux/FX-send output.
- 1 Record/aux/session output on RCA connectors.
- 1 Strong head-phones output on JACK (6,35mm) and mini-JACK (3,2mm).
Control functions channel 1 and 2:
- Channel 1-2 reverse switch.
- Phono-Line input select switch.
- Rotative level control per channel.
- Triple tone control with short faders, for very fast manipulating of the audio spectrum (+10dB/ -21dB), with 90 degrees turnable buttons.
- Aux/FX-send push-button for routing the signal to external effects-units.
- Short balance fader.
- CUT-switch with very low operating force. Can be used in 3 modes, momentary-CUT, latching-CUT and double-speed-CUT. Can be placed in 8 positions.
- Easy slide 45mm fader with specially designed for high speed operating button.
- Channel fader reverse switch with LED indication at the front.
- Channel fader curve control with potentiometer at the front.
- Easy slide 45mm crossfader to fade between channel 1 and 2.
- Crossfader reverse switch with LED indication at the front.
- Crossfader curve control with potentiometer at the front.
- PFL ON/OFF button
- PFL select fader, to create a mixed signal of channel 1 and 2 in the headphones
All volume controls on channel 1 and 2 are done by microcontroller controlled VCA. The microcontroller works with fuzzy-logic-software, with a clock frequency of 20MHz. This fuzzy-logic-software modifies itself depending on the position of the different controls and depending on the method of operating of the user of the mixing panel.
The channel faders, crossfader and CUT-switches can easily be replaced via frontpanel after lifting of the scratchplate.
Control functions channel 3:
- Mic-Line input select switch.
- Rotative level control.
- 0dB LED to adjust the level.
- Dual band equalizer with rotative potmeters.
- PFL ON/OFF button.
- Routing switch to route the signal to channel 1 or 2 or directly to the mix.
- Short channel fader for fast operation.
Channel 4: - Rotative level control.
Soft touch rotative knobs for better grip on all rotative potmeters.
Mode switch to select mono or stereo operation of the mixing panel, ideal for working with records with different left and right tracks.
Two master outputs with rotative volume control (also useable as monitor or booth output).
Two bright VU-meters to show the levels of the inputs or the mixed signal.
Normal and upside down text print at the back panel to facilitate connection
Soft rubber anti-slide buttons at the bottom of the mixer.
Power switch on the back of the panel, to avoid accidentally switching off the panel.
External power supply, to reduce disturbances.
OPTIONS
Optical high quality crossfader
Optical high quality channel fader
Digital session/aux/backtape input via RCA connector with level control at the back panel
Digital record/aux/session output via RCA connector at the back panel
More info when it arrives.
SIEHT SEHR SEHR INTERESSANT AUS!!! Mal sehen, wie der gegen die neuen Pio's, die Ranes und die Vestax abschneiden wird!
